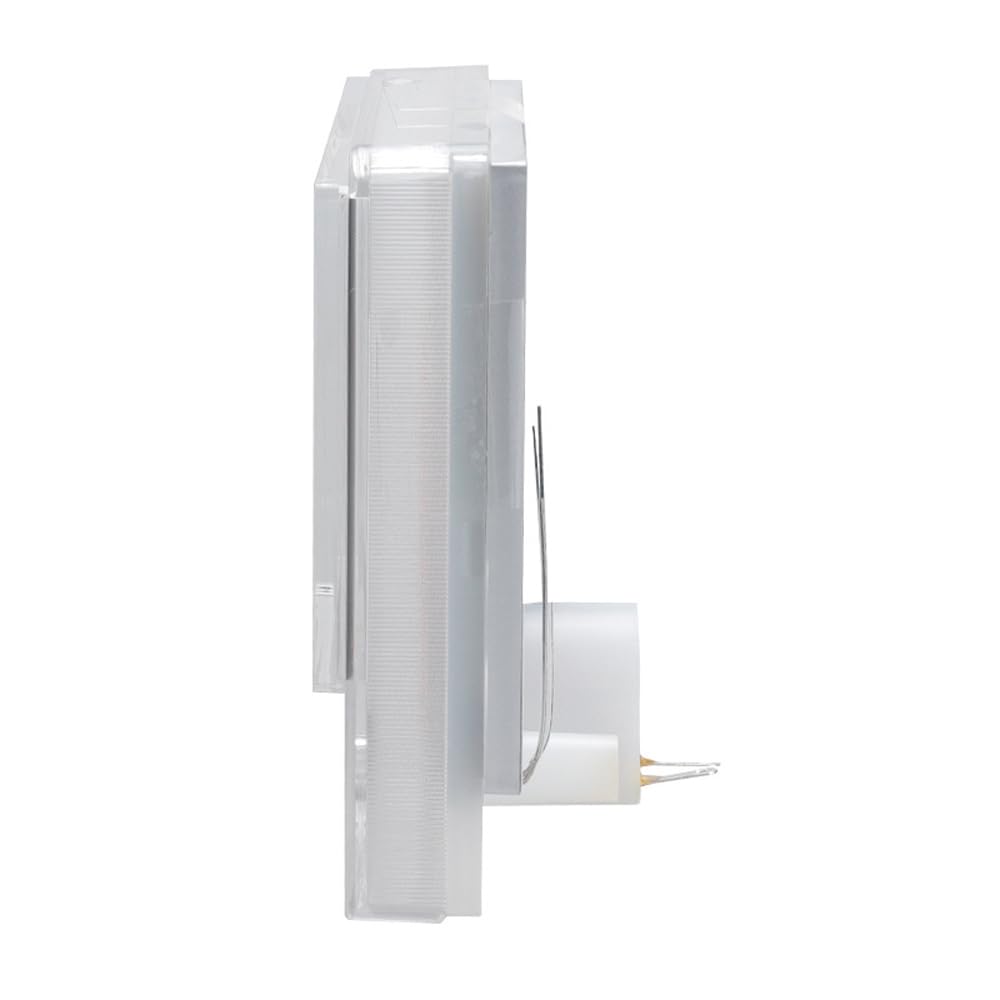

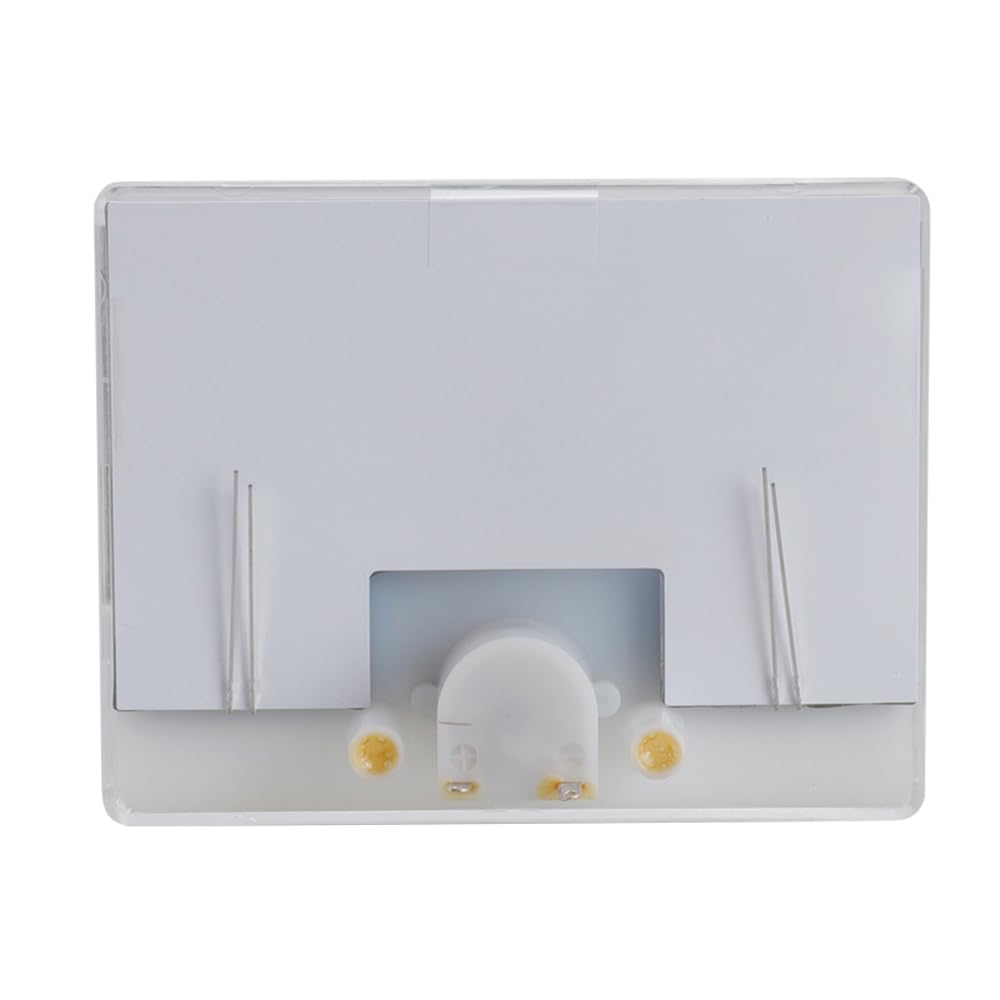

High Precision VU Level Meter 3.0-3.2V 20mA 960uA 650Ω Digital Pointer Meter Audio Volume Meter with Backlight
Product details
| Management number | 239769311 | Release Date | 2026/07/14 | List Price | US$22.00 | Model Number | 239769311 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications: Shell: white Pointer material:Nickel white copper Pointer color:red Pointer size:Length 44mm Width 0.45±0.1mm shell material:Upper cover:PMMA lower cover:PS Backlight:3V 20mA Connection method:All-in-one Maximum current sensitivity:960uA±10% Internal DC resistance:650Ω±10% insulation:Above 50MΩ Damping time:2-3Second Pointer sticking:Within 1/2 of full scale Packaging: 1 * VU level meter
- 【High Quality】The VU meter is made of high‑quality ABS materials, with excellent durability and stability, has good performance and long service life.
- 【Easy to Use】VU meter audio is the most basic tool in audio equipment, easy to install and use, can improve work efficiency, save time and energy.
- 【Feature】The power amplifier meter is compact design, easy to carry and store, with pointer dial, high accuracy, can directly display measurement results.
- 【Wide Use】The level meter has exquisite workmanship, strong practicability, suitable for DIY, recording studio, home audio, car audio transform, etc.
- 【Quality Assurance】The product is manufactured under strict quality control and standard requirements, and has a high safety factor, so it can be used with confidence.
| ASIN | B0F2HT9WFN |
|---|---|
| Model | TN-90A-S0538-960uA |
| Voltage | 12 Volts |
| Brand Name | Generic |
| Item Weight | 0.31 Kilograms |
| Part Number | TN-90A-S0538-960uA |
| Manufacturer | QIANQI |
| Material Type | ABS |
| Mounting Type | Surface Mount |
| Item Dimensions | 1.38 x 1.46 x 1.38 inches |
| Package Type Name | Retail Box |
| Number of Channels | 1 |
| Included Components | 1PCS VU level meter |
| Maximum Supply Voltage | 12 Volts (DC) |
| Minimum Supply Voltage | 12 Volts |
