INTBUYING Rgt-140 Physicians Mechanical Standing Height And Weight Scale Physical Scale Medical

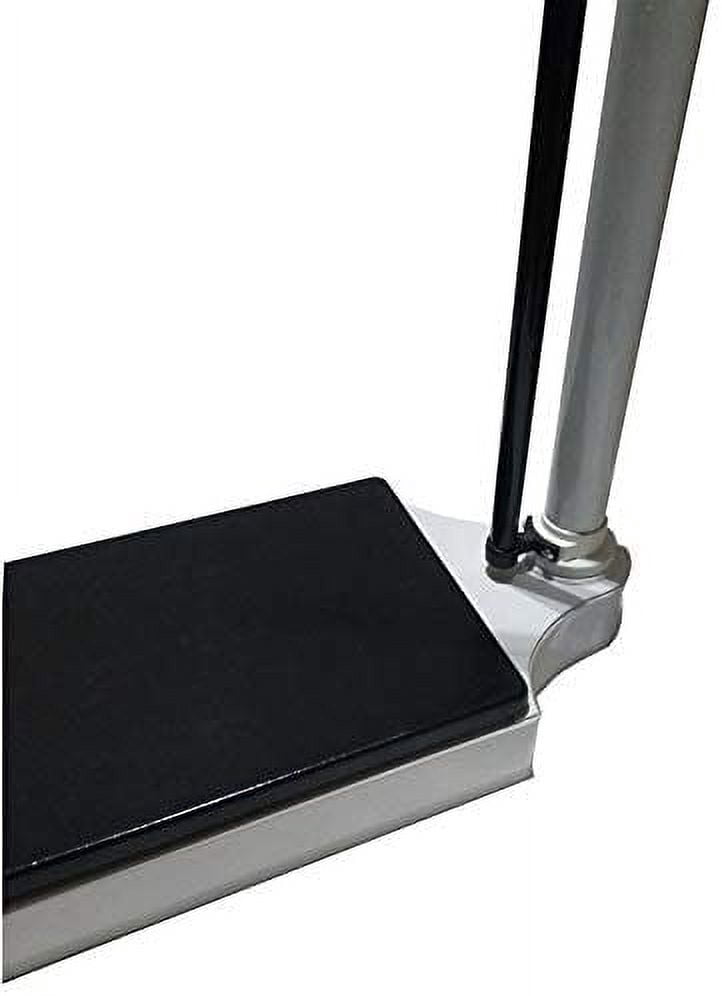

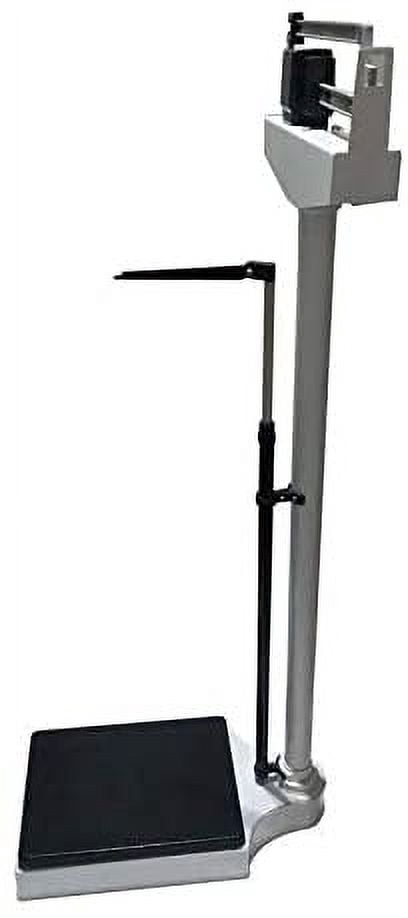

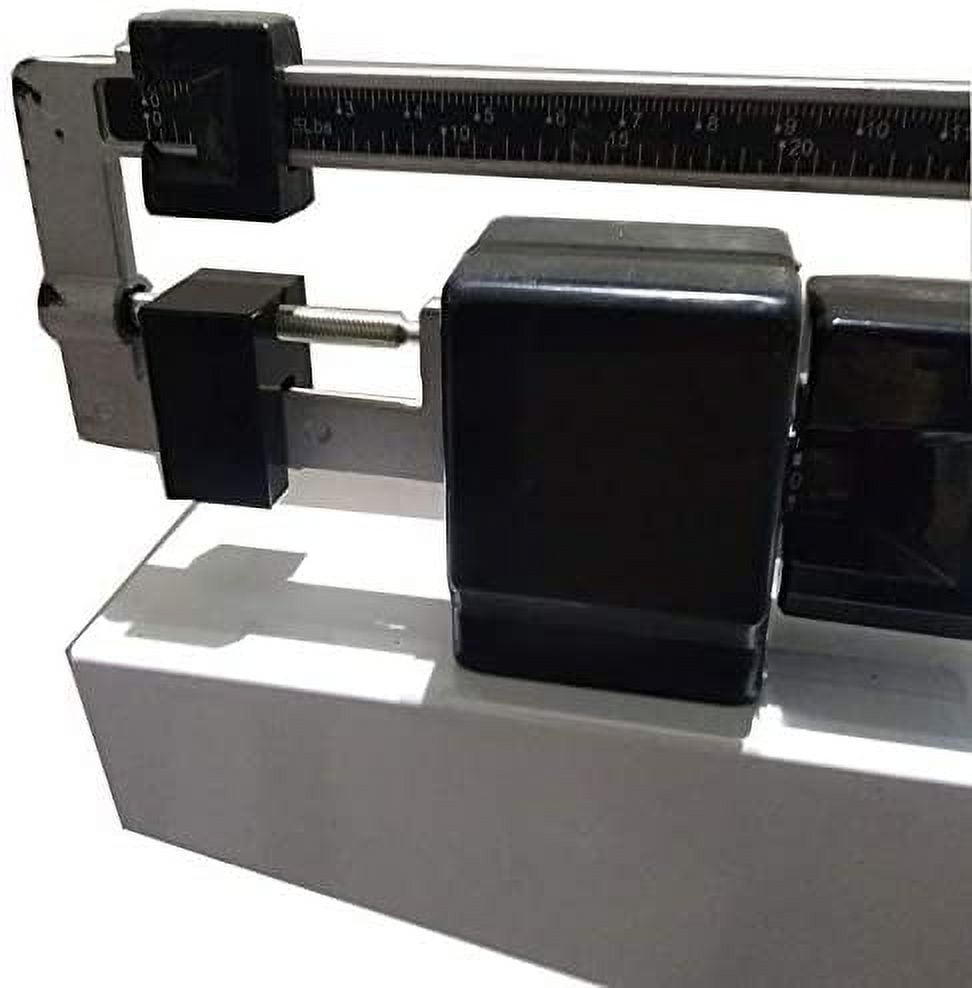

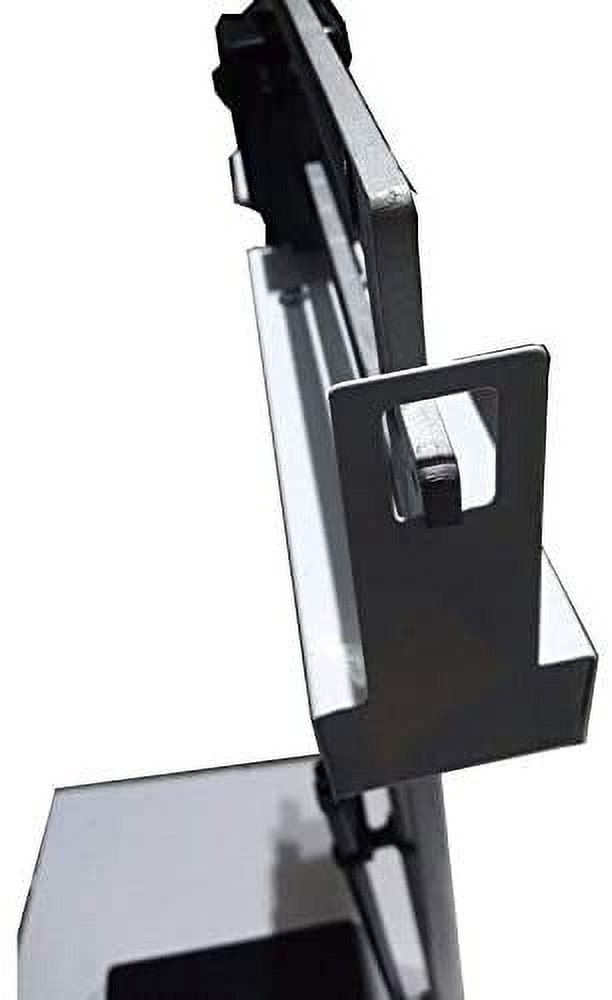

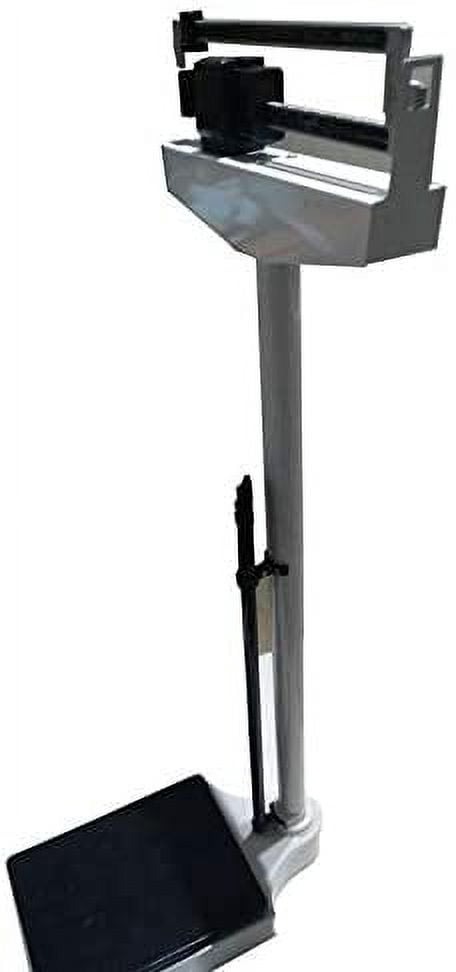

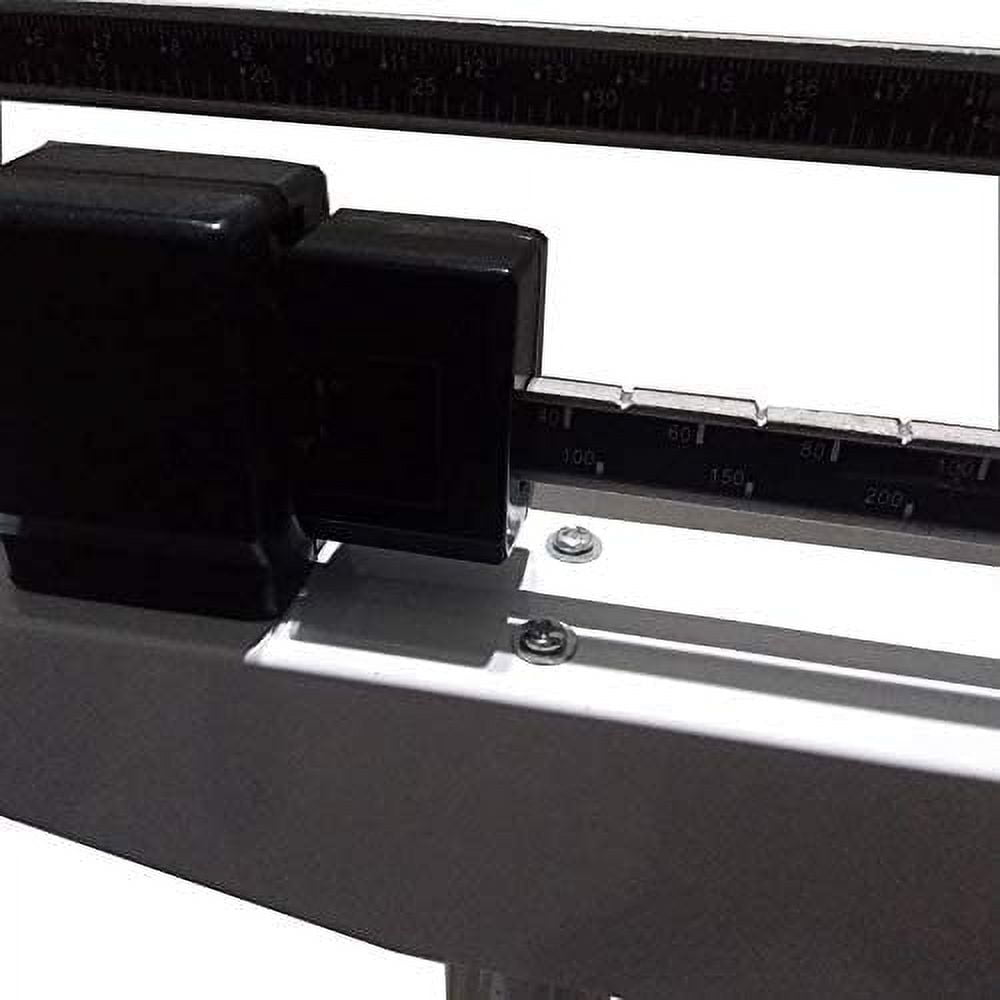

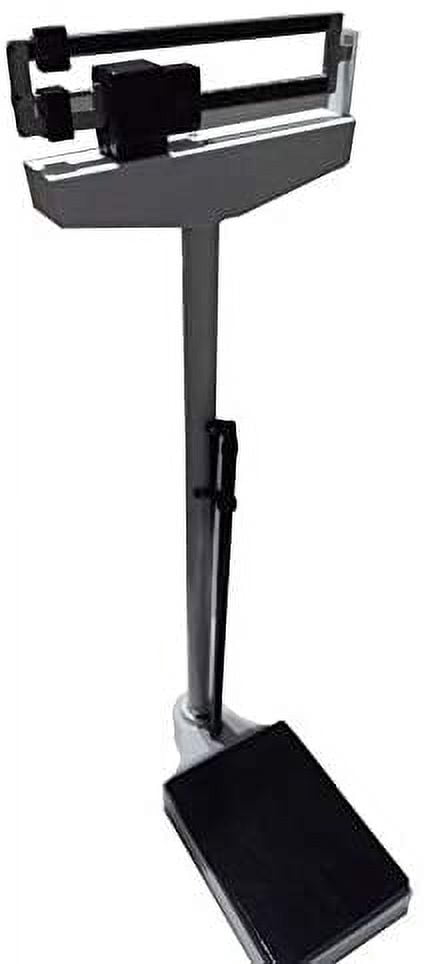

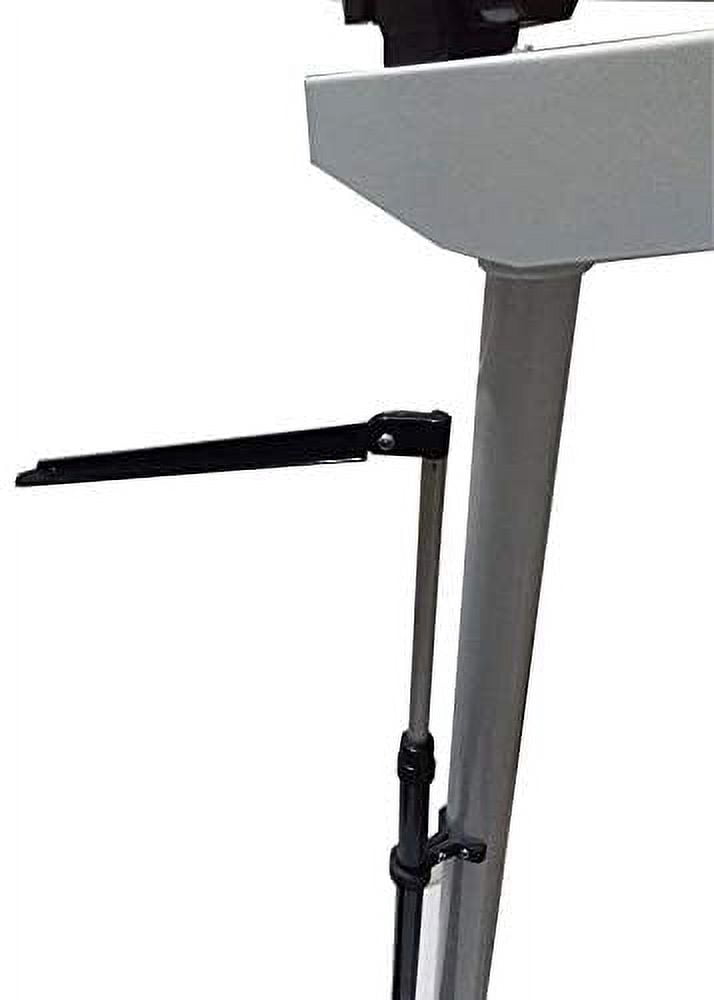

HEALTH SCALE RGT<br>The Health Scale RGT is a scale which can both weigh the body and measure the Height.The scale has the advantages of large weighing range,accuracy and high sensitivity.It is widely applicable for measuring weight and height of person in enterprises,schools hospitals, clinics and sports departments, therefore is the basic examination device of the medical department. This scale also can be used for weighing other things<br>Speciications<br>1. Body weighing:<br>Maximum capacity: 140kg<br>Scale division(d): 200g<br>2. Height measuring:<br>Range of measurement 70-190cm<br>Scale division: 0.5cm<br>3. Size of platform(L xW) 37 x 27 cm<br>4. Overall dimension (LxWxH) 132x49x15cm<br>5. Gross Weight:15kg<br>6.Carton size:135*53*23cm<br>Cautions<br>1. Remove all the parts for fixing the scale temporanily after unpacking the box, then assemble the scale in accordance with the sketch<br>2. The Health Scale should be located on the flat fioor, the column should be vertical with the floor and all the parts of it should be in proper contact.<br>3.With the main and sub sliding weight at zero position, the measuring lever should be keeping balance without load.The indicating tip should stop at the centre of viewing window after a while of even swing.In case of unbalance it can be adjusted with a screw driver to turn the adjustment screw<br>4.When measuring the height, pull out the inner tube which is sufficient to measure the height of 70-126 /80-136cm.If the height is taller than 126/136cm,put out the central tube,the height of 126-190/136-210cm can be measured. <br>Item include:<br>1*scale 054277<br>

• The Health Scale RGT is a scale which can both weigh the body and measure the Height.
• The scale has the advantages of large weighing range,accuracy and high sensitivity.
• It is widely applicable for measuring of person in enterprises,schools hospitals, clinics and sports departments
• The basic examination device of the medical department. This scale also can be used for weighing other things
• Size of platform(L xW) 37 x 27 cm
